Lab Instructions

Summary

Hardware accelerating a neural network classifier trained on MNIST.

Key Takeaways

• Synthesize Soft processor (Nios II) on FPGA
• Using hardware to accelerate dot product, memory access, and other operations
• Using Platform Designer to design a custom system

Project Components

Implemented Modules

• Wrapping the provided VGA core to use the Avalon Slave interface
• Memory copy accelerator, to offload memory copying from the CPU (primarily for copying from SDRAM to on-chip)
• Dot product accelerator, to accelerate the weight and activations multiplication
• Faster dot product accelerator, to read the weights and activations in parallel

HDL code can be provided upon request, due to course policies.

Simulation

• Full rtl SystemVerilog testbenchs for all modules using ModelSim Altera
• Testbenches in C to test interface with Nios II
  • Gaussian blurring an image to test wrapped VGA core
  • Basic tests for memory copy and dot product accelerators

Tools

• Quartus Prime for compilation
• Platform Designer for system design
• Intel FPGA Monitor Tool for memory manipulation
• ModelSim Altera for simulation

Hardware

• DE1-SoC FPGA
• VGA monitor

IP Modules Used (generated with Quartus Prime)

• VGA core adapter
• On-Chip Memory
• Parallel I/O
• SDRAM Controller
• JTAG UART
• Nios II Processor

Provided Information

• C code for a Mnist neural network classifier using pure software

Results

Performance (with respect to software versions running on Nios II)

• The dot product accelerator is able to accelerate the dot product by ~2.5x
• The faster dot product accelerator is able to accelerate the dot product by ~3.5x
• The memory copy accelerator is able to accelerate the memory copy by ~2.5x
• The full system is able to accelerate the 3 layer Mnist neural network classifier by ~2.5x

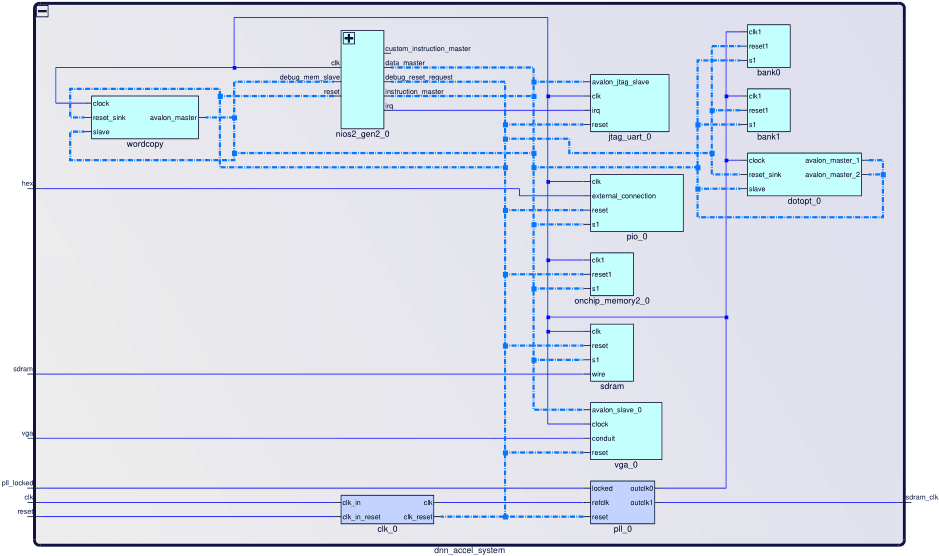

System Design
